$26,920.00
Out of stock
Description
High Output Self-Contained self-cleaning duplex filter module with stainless steel filter element. Provides up to 120 gallons per minute of filtered water. Filtration down to 25 microns absolute.
This module replaces many obsolete reclamation units and can use your existing pumps. It is stand alone requiring only compressed air and power for the CPU.
Smart Filter Module datasheet (PDF)
Specifications
- H: 46″ W: 34″ D: 28″ weight 504 lbs (shipping weight 725 lbs)
- Control Power: 115 vac, 15 amp max
- On/Off Control: Switch selectable Off/On or remote
- Primary Pumps: Optional
- Filter elements: 304 stainless steel
- Inlet filtration: Optional Cleanable Basket Strainer
- Primary Filtration: 2 x 25-micron self-cleaning filters
- Water Inlet: 2″ FNPT
- Filtered Water Outlet: 2″ FNPT
- Air Requirement: 90 PSI 3/8 min hose diameter
- Backwash Cycle Time: 8 seconds
- Warning alarm and auto cut-off to protect your pumps if water flow stops.
- 304 Stainless steel frame with adjustable legs
U.S. Patent No. 7,390,419
Options
- Ozone injection
- AutoBypass
- Pump and Basket Strainer (sized per job and application) call for pricing
Related products
-

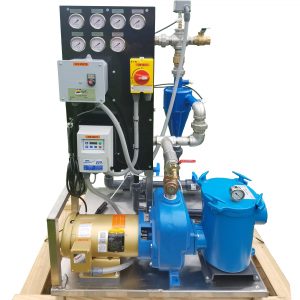

Multi Hydrocyclone Reclaim System
