The K2 ozone generator utilizes the corona discharge method of producing ozone from oxygen. The corona discharge method utilizes a high voltage to energize oxygen atoms, enabling them to accept a third atom in the molecular structure. The high voltage plasma is the energizing force enabling the O2 molecules to cling together creating O3.

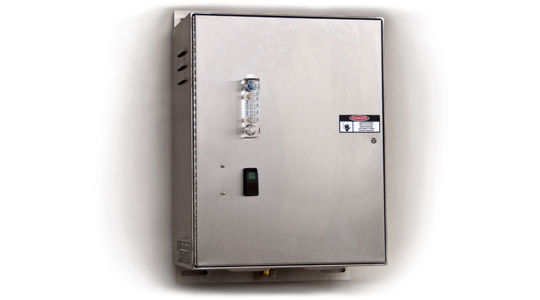

The K2 ozone generator is a dual power supply and corona cell unit. The ozone generator, depending upon gas flow oxygen concentration, gas pressure and temperature, can produce from 0 to 22 Gm/hr of ozone. In standard applications of 98% oxygen input gas, 0-5 psi pressure and standard room temperature ( 71̊ F ) these units produce 20 Gm/Hr.
Features
- Non corrosive stainless steel case
- Water trap air ventilation
Reduces possibility of damage from water spray - Built-in safety devices:
- Door interlink removes power when door is opened to prevent shock injury from high voltage Flow switch shuts off unit if gas flow is interrupted
-Fused circuit boards
-Integrated power filter, surge suppressor
-U.L listed materials for non flammability - Built for continuous duty operation
- Air cooled
- Integrated Flow Meter
- Brass oxygen/air inlet and Stainless Steel ozone outlet, barbed fittings
- Power on indicator light integrated into spashproof switch
Energizes when gas flow is established
Specifications
- Dimensions
(H 21” x W 14” x D 8”)
Mounting holes 12” across x 19 1/8” top to bottom
Shipping weight 28 lbs - Corona Discharge Ozone Generation
- 21.2 gm/hr with oxygen (98% O2 @ 6 Lpm)
- Ozone output purity 4.6% by weight
- Operating pressure from -2 to 15 psi
- 110-120 vac 60 hz. U.S. or 220-230 vac 50 hz European units
Current draw 4.0 amps RMS (460 watts) feed from 10 amp breaker
Incoming line filter, surge suppressor carries UL, CSE, ETL certifications
Peak surge suppression 600VAC (class 6 solid state relay) - Temperature from 33 to 90 degrees Fahrenheit
- Cord length 6’
- Case material 304 Stainless Steel
- Brass barb fitting inlet and 316 stainless barb fitting output sized for 1/4″ i.d. tubing
