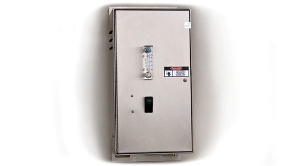

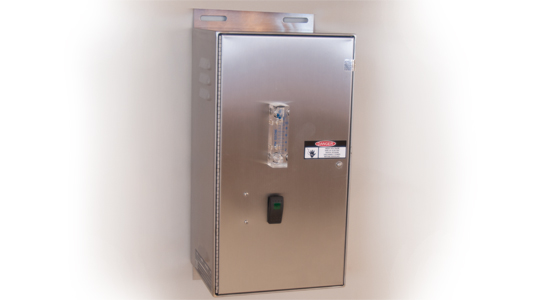

Ozone Generator: Model K1 (single cell)
1996.00 - 2100.00
Tested to U.L. safety standards, ETL-listed

Features

Datasheet
Box diagram
Manual
  • New  Variable rate output and external on/off control
  • Non corrosive stainless steel case
  • Water trap air ventilation
    Reduces possibility of damage from water spray
  • Built-in safety devices:
    – Door interlink removes power when door is opened to prevent shock injury from high voltage Flow switch shuts off unit if gas flow is interrupted
    -Integrated power filter, surge suppressor
    -U.L listed materials for non flammability
  • Built for continuous duty operation
  • Air cooled
  • Integrated Flow Meter
  • Brass oxygen/air inlet and Stainless Steel ozone outlet barb fittings
  • LED indicator lights Green for normal operation, Red for system fault (overtemp, no flow, case open or power fault)

Specifications

  • Dimensions
    (H 21” x W 9.5” x D 8”)
    Mounting holes 8” across x 19 1/8” top to bottom
    Shipping weight 26 lbs
  • Corona Discharge Ozone Generation
  • 10.9 gm/hr with oxygen (98% O2 @ 6 Lpm)
  • Ozone output purity 4.6% by weight
  • Operating pressure from -2 to 15 psi
  • 110-120 vac 60 hz. U.S. or 220-230 vac 50 hz European units
    Current draw 1.6 amps RMS (187 watts) feed from 5 amp breaker
    Incoming line filter, surge suppressor carries UL, CSE, ETL certifications
    Peak surge suppression 720VAC
  • Temperature from 33 to 90 degrees Fahrenheit
  • Cord length 6’
  • Case material 304 Stainless Steel
  • I/O 1/4″ barb fittings for 3/8 OD x 1/4″ ID ozone resistant tubing.

Options

  • Aux input, allows for remote on/off
  • Variable output from 0 to 10 Gm/hr
  • Optional aux input allows remote on/off via ORP controller
  • Ozone Injector Manifold
